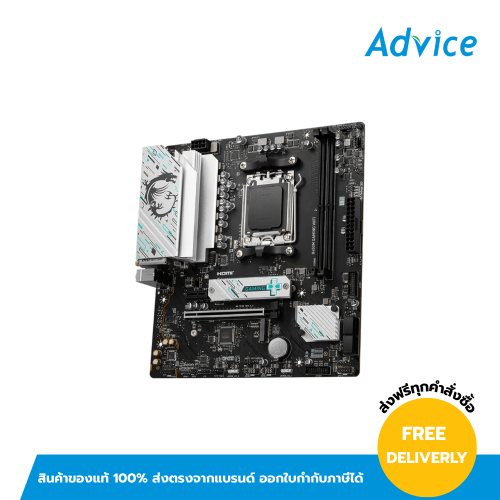

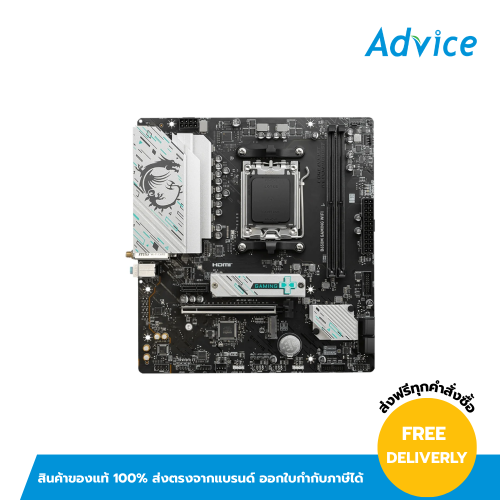

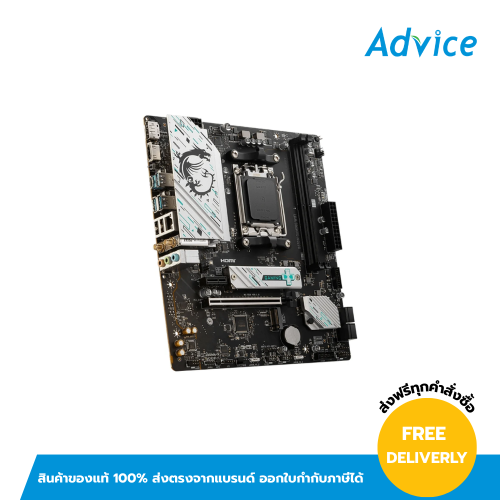

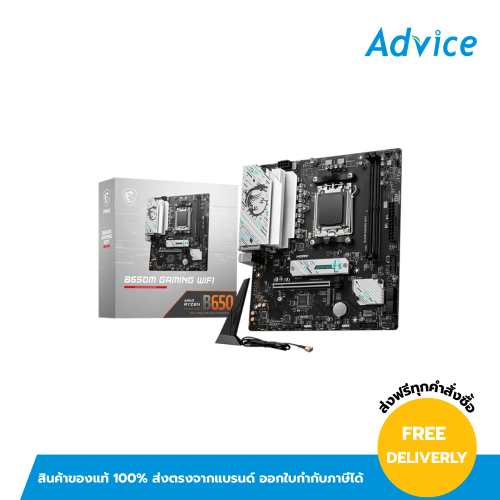

MAINBOARD (AM5) MSI B650M GAMING WIFI DDR5

*ประกัน 3 ปี

รายละเอียดสินค้า

อ้างอิงจาก : www.msi.com

คุณสมบัติ

Brand	MSI
Model	B650M GAMING WIFI (DDR5)
CPU Support	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
CPU Brand	AMD
Socket	AM5
Chipset	AMD B650
Memory Support	2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™
Maximum Memory Bus	7800
Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Multi Graphic Support	N/A
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots	1x PCI-E x16 slot (Qty) Supports x16/x1 • Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
Maximum PCIe Version	PCIe 4.0
Storage	2 x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4 x SATA 6G (Qty) • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
M.2 Storage Type Support	NVMe
M.2 Slot	2
USB	2 x USB 2.0 (Rear) 4 x USB 2.0 (Front) 3 x USB 5Gbps Type A (Rear) 1 x USB 5Gbps Type C (Rear) 4 x USB 5Gbps Type A (Front)
Internal I/O Connectors	1 x Power Connector(ATX_PWR) 1 x Power Connector(CPU_PWR) 1 x CPU Fan 3 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 2 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 4 x USB 2.0 ports 4 x USB 5Gbps Type A ports

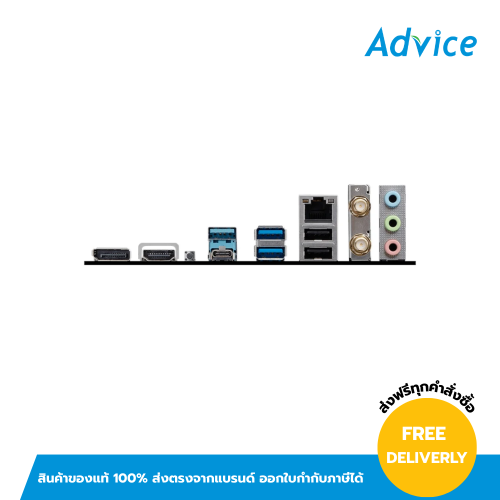

Back Panel Connectors	2 x USB 2.0 3 x USB 3.2 Gen 1 5Gbps (Type-A) 1 x USB 3.2 Gen 1 5Gbps (Type-C) 1 x DisplayPort 1 x HDMI™ Audio connectors 2.5G LAN Wi-Fi / Bluetooth Flash BIOS Button
LAN	Realtek® RTL8125BG 2.5Gbps LAN
Wireless Data Network	Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Form Factor	Micro ATX
H/W Monitoring	N/A
BIOS	N/A
Special Features	LED FEATURE : 4x EZ Debug LED
Software Features	N/A
Operating System Support	Support for Windows® 11 64-bit, Windows® 10 64-bit
Package Contents	N/A
