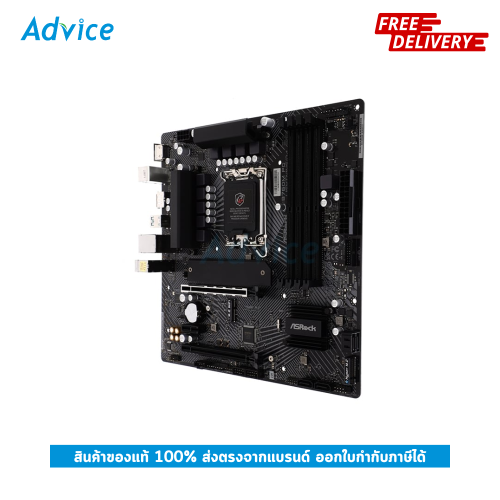

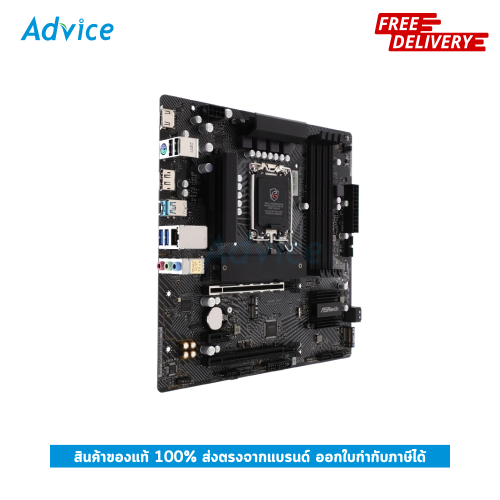

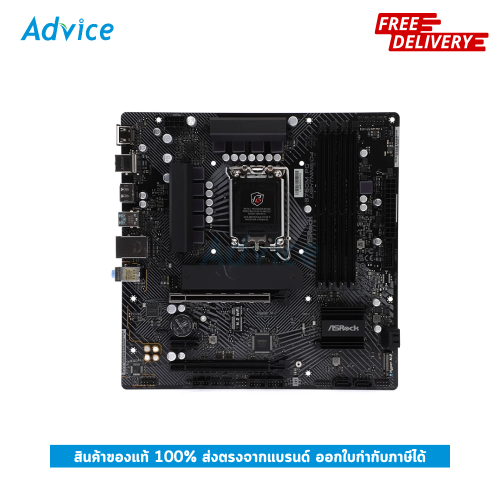

MAINBOARD (1700) ASROCK B760M PG LIGHTNING DDR4

• - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
• - 7+1+1 Power Phase, Dr.MOS for VCore+GT
• - Supports DDR4 5333MHz (OC)
• - 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
• - Graphics Output Options: HDMI, DisplayPort
• - Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• - 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
• - 1 USB 3.2 Gen1 Type-C (Rear),
• - 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
• - 6 USB 2.0 (2 Rear, 4 Front)
• - Realtek Gigabit LAN
• - Supports ASRock Auto Driver Installer

คุณสมบัติ MAINBOARD (1700) ASROCK B760M PG LIGHTNING DDR4

*ประกัน 3 ปี

Brand	ASROCK
Model	B760M PG LIGHTNING DDR4
CPU Support	- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT)
CPU Brand	Intel
Socket	1700
Chipset	Intel B760
Memory Support	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB - Supports Intel® Extreme Memory Profile (XMP) 2.0   *1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. 2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively. 2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively.
Maximum Memory Bus	5333
Graphics	- Intel® Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz   *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Multi Graphic Support	None
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio
Expansion Slots	CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 1 x PCIe 4.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire™   *Supports NVMe SSD as boot disks
Maximum PCIe Version	PCIe 4.0
Storage	CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors   *Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks
M.2 Storage Type Support	PCIe 4.0
M.2 Slot	2
USB	1 x USB 3.2 Gen1 Type-C (Rear) 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front)   *All USB ports support ESD Protection
Internal I/O Connectors	1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)   *CPU_FAN1 supports the fan power up to 1A (12W). **CPU_FAN2/WP supports the fan power up to 2A (24W). ***CHA_FAN1~4/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

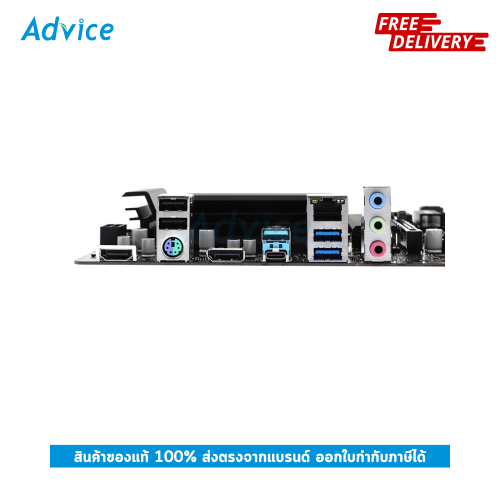

Back Panel Connectors	2 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C Port 3 x USB 3.2 Gen1 Type-A Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone
LAN	Gigabit LAN 10/100/1000 Mb/s Realtek 8111H
Wireless Data Network	N/A
Form Factor	Micro ATX
H/W Monitoring	N/A
BIOS	128Mb AMI UEFI Legal BIOS with GUI support
Special Features	Rock-Solid Durability - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT - ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
Software Features	Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer   *These utilities can be downloaded from ASRock Live Update & APP Shop
Operating System Support	Microsoft® Windows® 10 64-bit / 11 64-bit

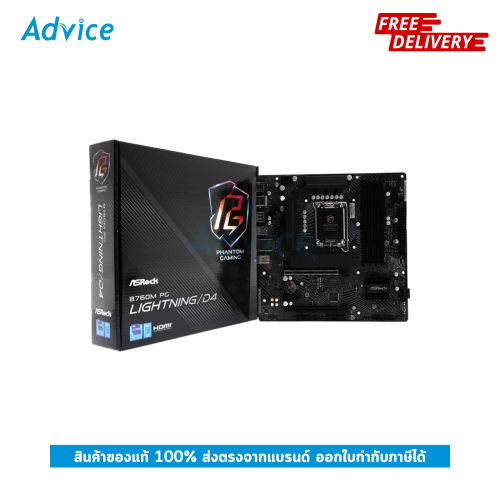

Package Contents	1 x User Manual 1 x I/O Shield 2 x SATA Data Cables 3 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket
Package Dimension	(W x D x H) : 25.50 x 28.00 x 6.00 cm
Gross Weight	1.00 KG
Volume	4,284.00 cm3
