★English Version★

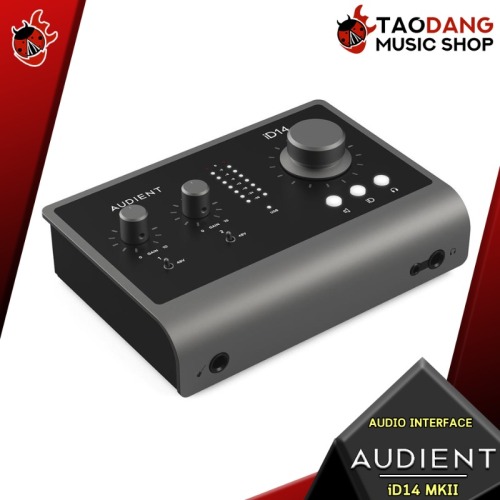

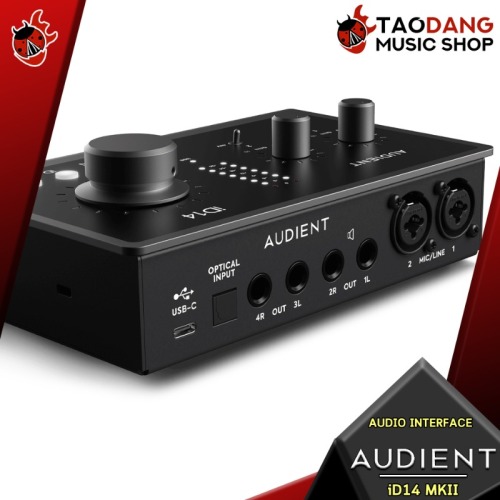

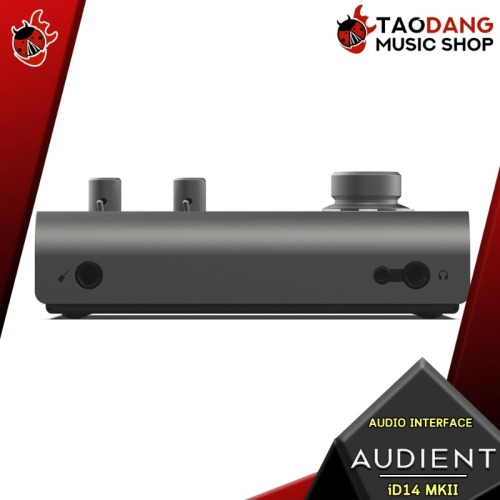

► Model : iD14 MKII
► D.I / Instrument Input
► RANGE : 40dB
► LINEUP : 12dBu = 0dBFS
► SNR : 100dBu A-Weighted
► FREQUENCY RESPONSE - MIN GAIN : ±0.5dB 10Hz to 20kHz

► Microphone Preamplifier
★ Gain Range : 58dB
★ Lineup : 12dBu = 0dBFS
★ MIC Max Input Level : 12dBu
★ Max Input Level : 21dBu
★ Frequency Response - MIN GAIN : ±0.5dB 10Hz to 40kHz

► Analogue to Digital Converter
★ Dynamic Range : 120dB A-Weighted
★ CMRR : >80dB
★ Frequency Response : ±0.5dB 10Hz to 40kHz

► Line Outputs (DAC)
★ LINEUP : 12dBu = 0dBFS
★ Dynamic Range : 125.5dB A-Weighted
★ Frequency Response : ±0.1dB 10Hz to 40kHz

► Headphone Outputs
★ Lineup : 18dBu = 0dBFS
★ Dynamic Range : 125.5dB A-Weighted
★ Frequency Response : ±0.25dB 10Hz to 40kHz

► USB-C High Speed
★ BUS POWER :
★ MIN REQUIREMENT : 0.9A @ 5V >=USB 3.0 Port
★ MAX REQUIREMENT : 1.5A @ 5V USB-C: Provides higher headphone outputs levels

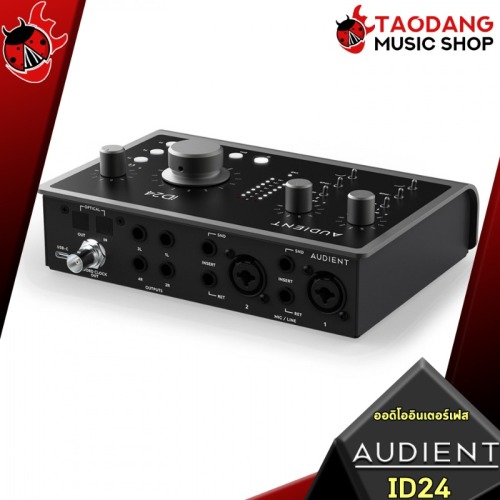

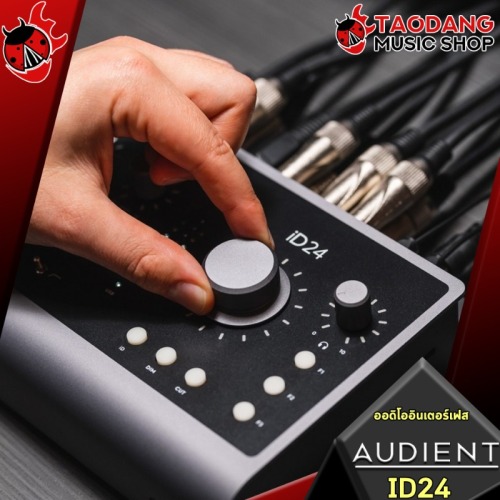

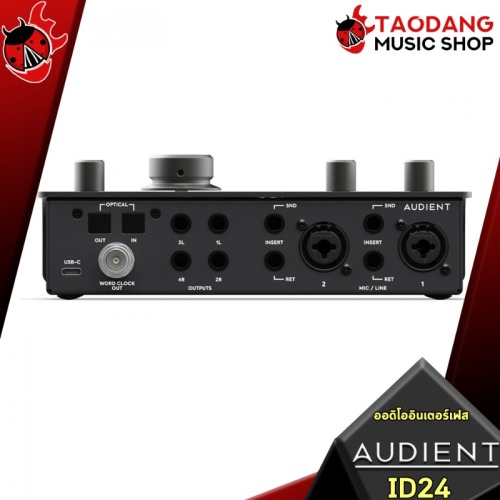

► Model : iD24
► Microphone Preamplifier
★ MIC GAIN : 0 to +58dB
★ MAXIMUM INPUT LEVEL : +12dBu
★ MIC EIN: -13dBu A-Weighted CMRR : >75dB@1kHz
★ FREQUENCY RESPONSE : +/- 0.5dB 10Hz to 40kHz
★ PHANTOM POWER : 48V +/-4V @ 10mA/Channel

► Line Inputs
★ LINE GAIN :-10 to +48dB
★ MAXIMUM INPUT LEVEL :+22dBU

► D.I / Instrument Input
★ D.I GAIN : 0 to 58dB
★ MAXIMUM INPUT LEVEL : +12 dBu
★ FREQUENCY RESPONSE : +/- 0.5dB 0.5dB 10Hz to 40kHz
★ INPUT IMPEDANCE : 500kΩ unbalanced

► Analogue to Digital Converter
★ MAXIMUM INPUT LEVEL : 12.5dBu=0dBFS
★ FREQUENCY RESPONSE : +/- 0.2dB 0.5dB 10Hz to Fs/2 (Nyquist)
★ DYNAMIC RANGE : 122dB A-weighted
★ INPUT IMPEDANCE : >10kΩ

► Digital to Analogue Converter
★ MAXIMUM OUTPUT LEVEL : 12dBu=0dBFS
★ DYNAMIC RANGE : 126.5dB A-weighted
★ FREQUENCY RESPONSE : +/- 0.1dB 10Hz to Fs/2 (Nyquist)
★ OUTPUT IMPEDANCE : <100Ω

► Headphone Outputs
► USB 2.0 High Speed
► Digital Input , Digital Output
► DSP Mixer Latency
